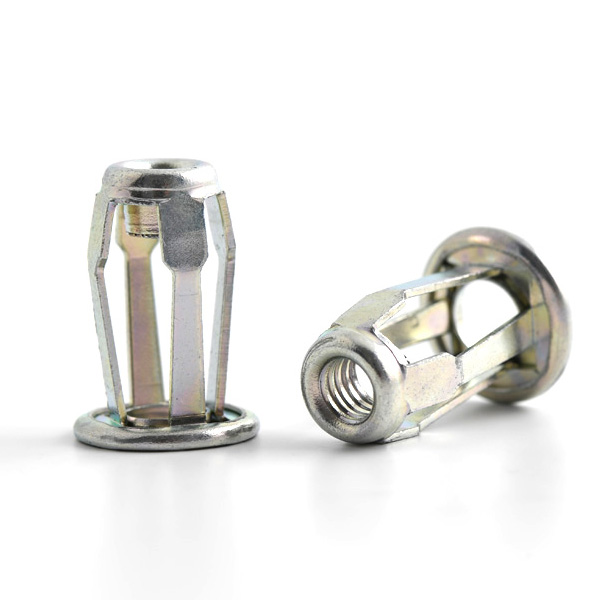

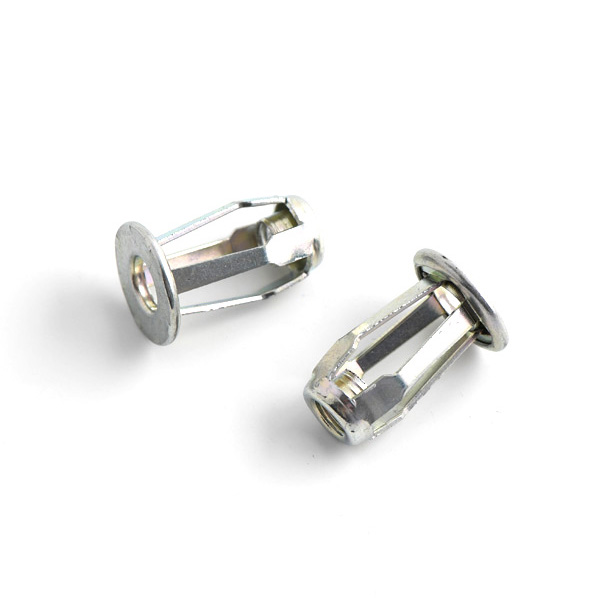

Type JK Split Body Rivet Nuts Steel Zinc
Product Details
The JK split body rivet nuts are designed for use in soft or brittle materials such as plastic and GRP. The 3 legs expand behind the parent material to provide a large footprint with excellent pull-out resistance.
Specification
| Thread Size | Grip Range | Gripmor Part No | Hole Diameter | Body Diameter | Head Diameter | Head Thickness | Overall Length |
| M4 | 0.1-5.0 | JK M4 SH | 8 | 8 | 12 | 1.6 | 17 |
| M4 | 5.0-10.0 | JK M4 LG | 8 | 8 | 12 | 1.6 | 22 |
| M5 | 0.1-5.0 | JK M5 SH | 10 | 10 | 14 | 1.6 | 18 |
| M5 | 5.0-10.0 | JK M5 LG | 10 | 10 | 14 | 1.6 | 23 |
| M6 | 0.1-5.0 | JK M6 SH | 12 | 12 | 16 | 1.6 | 18 |
| M6 | 5.0-10.0 | JK M6 LG | 12 | 12 | 16 | 1.6 | 23 |
| M8 | 0.1-5.0 | JK M8 SH | 15 | 15 | 18 | 1.8 | 20 |
| M8 | 5.0-8.0 | JK M8 LG | 15 | 15 | 18 | 1.8 | 25 |
Dimensions in mm
