Type PN Heavy Duty Split Body Rivet Nuts Steel Zinc

Product Details

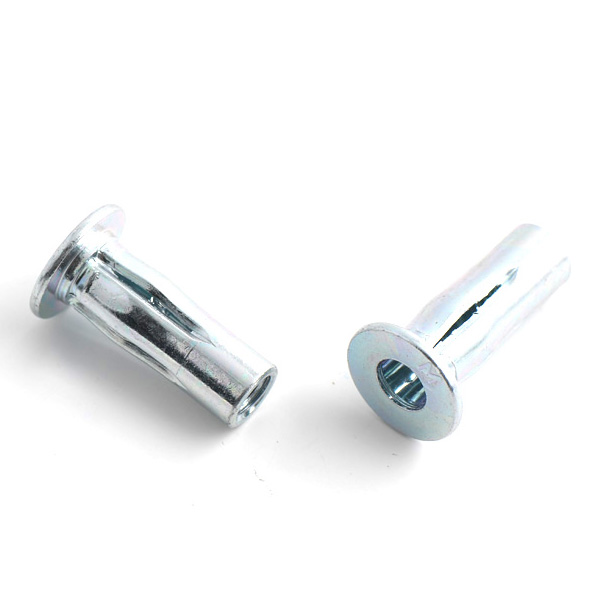

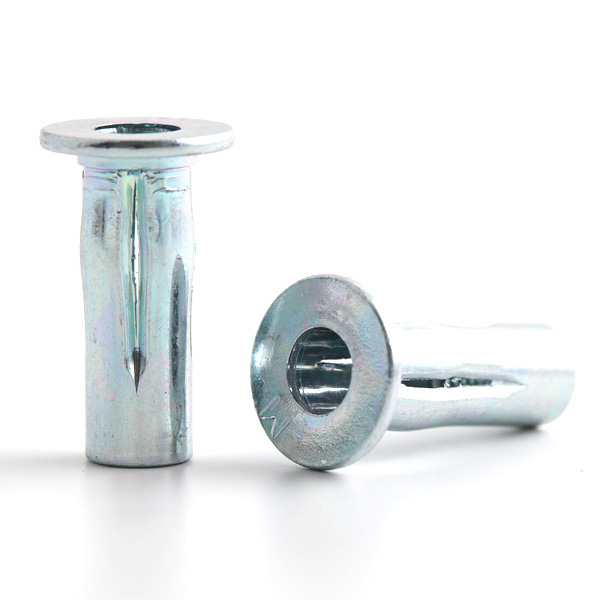

The PN split body rivet nuts are designed for use in plastic materials, thin sheet and hollow sections where very high pull-out forces are required. The 4 legs expand behind the parent material to provide a large load bearing area.

Specification

Thread Size	Grip Range	Gripmor Part No	Hole Diameter	Body Diameter	Head Diameter	Head Thickness	Overall Length
M6	0.5-7.1	PN M6 SH	10.0-10.2	9.8	16.4	1.6	27.4
M6	7.1-12.7	PN M6 LG	10.0-10.2	9.8	16.4	1.6	33.3
M8	0.5-7.1	PN M8 SH	12.7-12.9	12.6	19.6	1.7	31.3
M8	7.1-12.7	PN M8 LG	12.7-12.9	12.6	19.6	1.7	37
M10	0.5-7.1	PN M10 SH	15.1-15.3	14.9	22.7	2.4	33.7

Dimensions in mm

Thread Size	For Sheet Thickness	Hole Size Required	Part Ref	Order Code	Order Multiple
M6	0.5-7.1	10.0-10.2	PN M6 SH	XN516	100
M6	7.1-12.7	10.0-10.2	PN M6 LG	XN5162	100
M8	0.5-7.1	12.7-12.9	PN M8 SH	XN518	100
M8	7.1-12.7	12.7-12.9	PN M8 LG	XN5182	100
M10	0.5-7.1	15.1-15.3	PN M10 SH	XN5110	check
