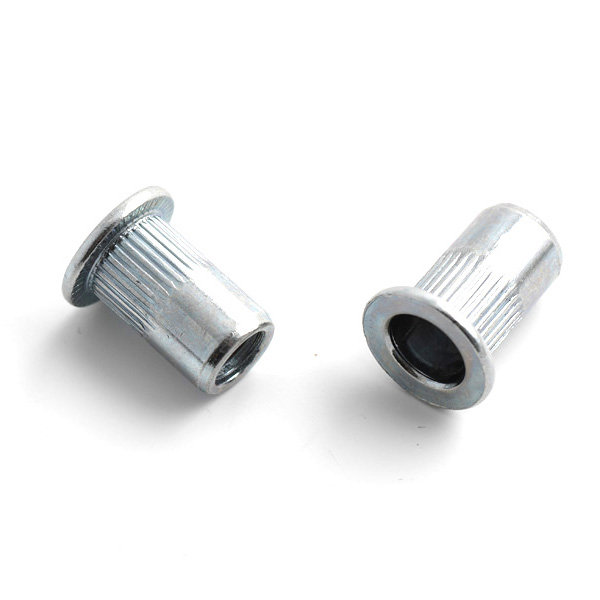

Type FLK Flange Head Rivet Nuts, Round Knurled Body Steel Zinc

Product Details

These flange head style rivet nuts offer excellent push-out & torque-out performance in predrilled or punched holes without any extra hole preparation. Rivet nuts are installed from one side only using a pneumatic, cordless or hand rivet nut tool and have many and varied applications ranging from high volume production to maintenance and repair work.

Type FLK features

Flange Head
Round Knurled Body
Open End
Steel Zinc Plated

Specification

For spec table please see download link below.

DOWNLOAD: Type FLK Flange Head Knurled Steel Rivet Nuts Spec Sheet

Thread Size	For Sheet Thickness	Hole Size Required	Part Ref	Order Code	Order Multiple
M3	0.5-2.0	5	FLK3	XN113	100
M4	0.5-2.5	6	FLK4	XN114	100
M4	2.5-4.0	6	FLK4-4.0	XN11440	100
M4	3.0-5.5	6	FLK4-5.5	XN11455	100
M5	0.5-2.5	7	FLK5	XN115	100
M5	3.0-5.5	7	FLK5-5.5	XN11555	100
M6	0.5-3.0	9	FLK6	XN116	100
M6	3.0-5.5	9	FLK6-5.5	XN11655	100
M6	5.5-8.0	9	FLK6-8.0	XN11680	100
M8	0.7-3.0	11	FLK8	XN118	100
M8	3.0-5.5	11	FLK8-5.5	XN11855	100
M8	5.5-8.0	11	FLK8-8.0	XN11880	100
M8	8.0-10.5	11	FLK8-10.5	XN118105	100
M10	1.0-3.5	12	FLK10/12	XN111012	100
M10	3.0-6.0	12	FLK10/12-6.0	XN11101260	100
M10	6.0-9.0	12	FLK10/12-9.0	XN11101290	100
M10	1.0-3.5	13	FLK10/13	XN111013	100
M10	3.5-6.0	13	FLK10/13-6.0	XN11101360	100
M12	1.0-4.0	16	FLK12	XN1112	50
M12	4.0-7.0	16	FLK12-7.0	XN111270	50
M12	7.0-10.0	16	FLK12-10.0	XN111210	50
