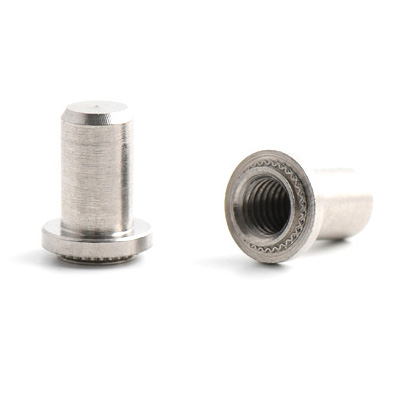

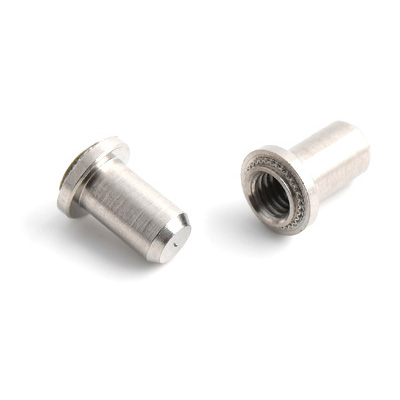

Stainless (C - BS) Blind Clinch Nuts

Product Details

These blind clinch nuts have an extended closed end section which encloses the screw thread to prevent any ingress of contamination into the product. Made from 300 series stainless steel and suitable for installation into materials of up to 70HRB hardness using a parallel squeezing force. For best performance we recommend using the highest shank code that is suitable for the parent material thickness.

Specification

Thread Size	Hole Diameter	Max Body Diameter	Body Height	Min Distance Centre to Panel Edge
M3	4.25	6.35	9.6	4.8
M4	5.4	7.95	11.2	6.9
M5	6.4	8.75	11.2	7.1
M6	8.75	11.1	14.3	8.6

Dimensions in mm

Thread Size	Shank Code	For Sheet Thickness	Part Ref	Order Code	Order Multiple
M3	1	1.0-1.4	C - BS M3-1 A2	XC0431	100
M3	2	1.4+	C - BS M3-2 A2	XC0432	100
M4	1	1.0-1.4	C - BS M4-1 A2	XC0441	100
M4	2	1.4+	C - BS M4-2 A2	XC0442	100
M5	1	1.0-1.4	C - BS M5-1 A2	XC0451	100
M5	2	1.4+	C - BS M5-2 A2	XC0452	100
M6	1	1.4-2.3	C - BS M6-1 A2	XC0461	100
M6	2	2.3+	C - BS M6-1 A2	XC0462	100
