CD Earth Tags - Aluminium
Product Details
Fast attachment, excellent electrical continuity and with no reverse marking or material perforation… CD Earth Tags are the ideal solution for earth connections in metal enclosures. The earth tags slide into a slotted chuck or collet which holds them in position during welding. Chucks are also supplied.
Capacitor discharge fasteners have a small pip under the weld end which melts during the arc and welds the end of the fastener to the material, this is assisted by spring pressure from the welding gun. The fast weld times minimize heat buildup, resulting in welds with very little distortion, discoloration or burning. They are often used where appearance is a necessary feature.
Specification

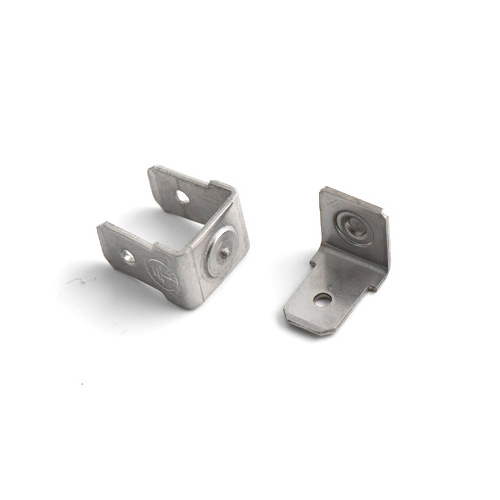

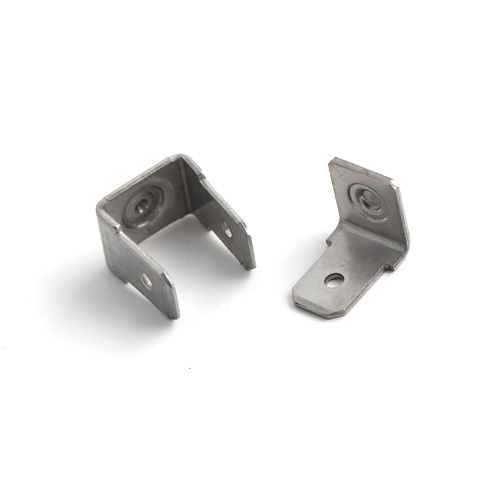

| Tag Type | Spade Size | Overall L x W x H |
| Single | 6.3 x 8 x 0.8 | 10 x 8 x 12 |
| Double | 6.3 x 8 x 0.8 | 10 x 8 x 12 |
Dimensions in mm
