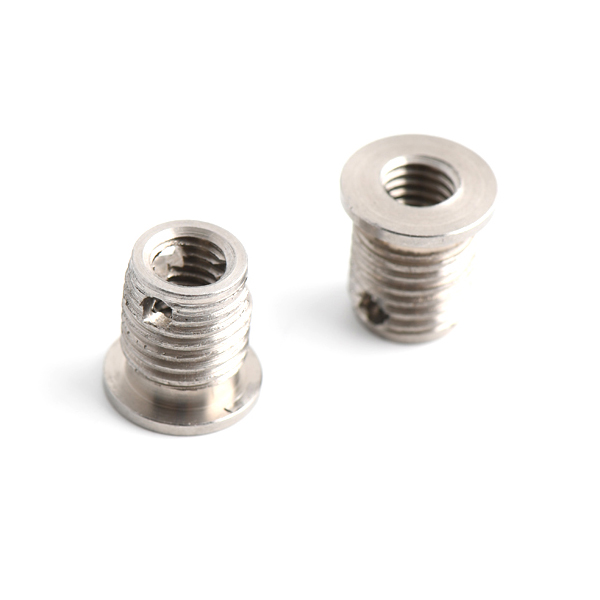

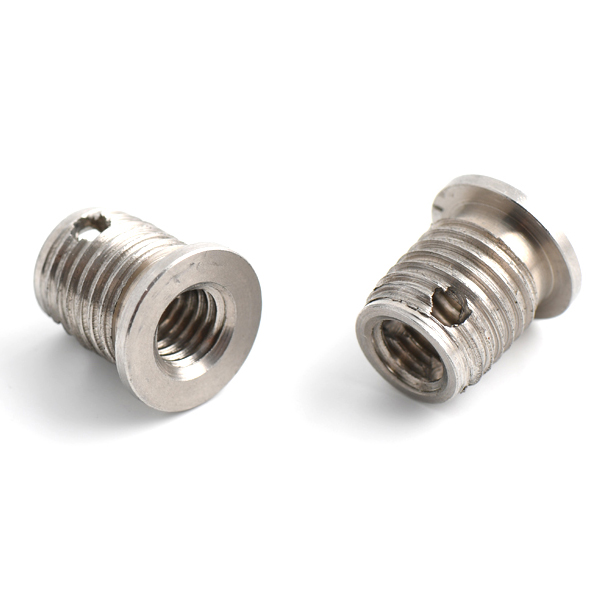

307 & 308 Series - Headed CB Type Self Tapping Inserts

Product Details

The 307 & 308 series self tapping inserts have an internal and external thread with cutting bores and are especially suitable for material with difficult cutting properties. Suitable for installation in materials such as aluminium alloys, magnesium alloys, duroplastics and most thermoplastics.

These self tapping inserts create an internal threaded fastening point with high pull out strength, which potentially enables a smaller diameter high tensile screw fastening to be used. This headed type provide an enhanced solution in certain applications.

Available in steel, brass or stainless steel.

Enquire Online

Thread Size	Diameter	Length	Order Code	Order Multiple
M5	8	8	X307.100.050	check
M5	8	11	X308.100.050	check
M6	10	9.5	X307.100.060	check
M6	10	13.5	X308.100.060	check
M8	12	10.5	X307.100.080	check
M8	12	15.5	X308.100.080	check
M10	14	11.5	X307.100.100	check
M10	14	19.5	X308.100.100	check
